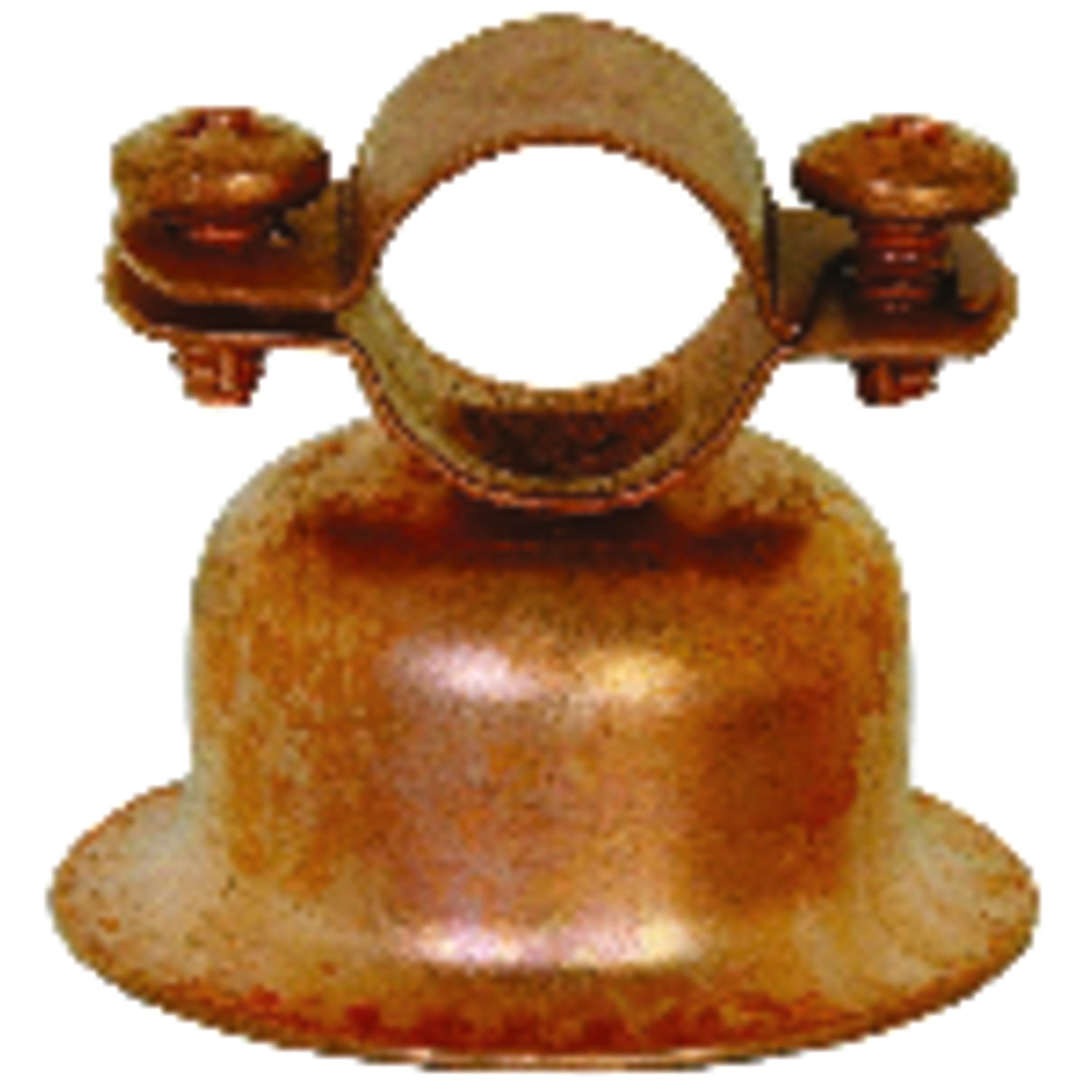

Sioux Chief 508 series copper plated bell hangers shall be used where necessary to support copper CTS in piping systems. Hanger shall be fastened directly to studs, joists or walls and secured with 21/2 Inch mounting screw provided. Bell hanger shall minimally provide a 3/4 Inch stand off distance from mounting surface. Hanger shall be Copper Plated. Upper and lower pipe saddles of hanger shall fit 1/2 Inch, 3/4 Inch or 1 Inch CTS tube after screws are tightened. Upper pipe saddle may or may not have void in strap for easier installation. Features. 1 in. Hanger Bell TypeSpecifications. Dimension 4.3 H x 4 W x 12.3 L. Weight 2.5 lbs
